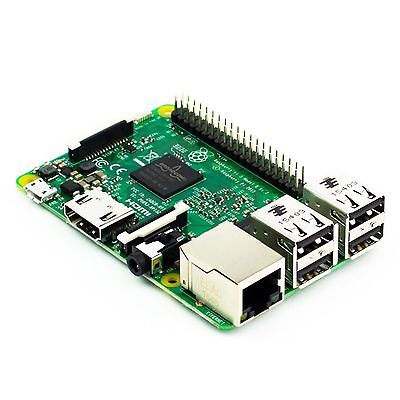

Quad Core 1.2GHz Raspberry Pi 3 64bit CPU 1GB RAM WiFi & Bluetooth 4.1 WalkaboutWiFi.com
WalkaboutWiFi.com: Quad Core 1.2GHz Raspberry Pi 3 64bit CPU 1GB RAM WiFi & Bluetooth 4.1 Posted in: Specs | by Brian Taylor | 2016 Oct 21
FEATURES:
1.2GHz QUAD Core Broadcom BCM2837 64bit ARMv8 processor
BCM43438 WiFi on board
Bluetooth Low Energy (BLE) on board
1GB RAM
4x USB 2 ports
40pin extended GPIO
HDMI and RCA video output
Key Improvements from Pi 2 Model B to Pi 3 Model B:
Next Generation QUAD Core Broadcom BCM2837 64bit processor
Processor speed has increased from 900MHz on Pi 2 to 1.2Ghz
BCM43438 WiFi on board
Bluetooth Low Energy (BLE) on board
Upgraded switched power source up to 2.5 Amps (can now power even more powerful devices over USB ports)
SPECIFICATIONS:
Broadcom BCM2387 chipset
802.11 bgn Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
1GB RAM
4 USB ports
4 pole Stereo output and Composite video port
Full-size HDMI for streaming and watching hi-definition video output at 1080
10/100 BaseT Ethernet socket to quickly connect the Raspberry Pi to the Internet
CSI camera port for connecting the Raspberry Pi camera
DSI display port for connecting the Raspberry Pi touch screen display
Micro SD port for loading your operating system and storing data
Micro USB power source
1.2GHz 64-bit quad-core ARM Cortex-A53 CPU (~ 10x the performance of Raspberry Pi 1)
Integrated 802.11n wireless LAN and Bluetooth 4.1
Complete compatibility with Raspberry Pi 1 and 2
