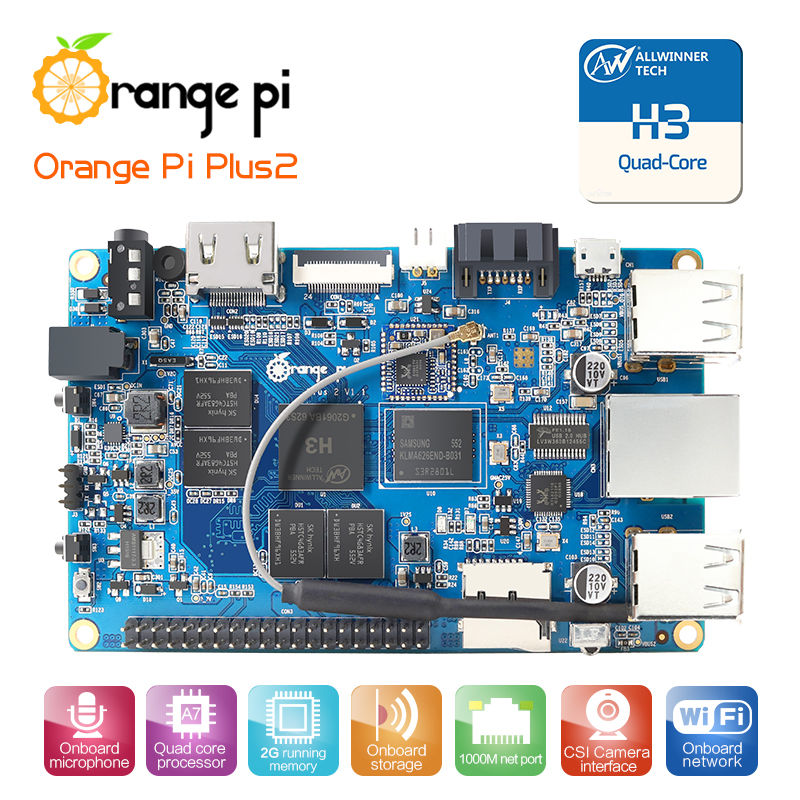

WalkaboutWiFi.com: OrangePiPlus2 Posted in: Specs | by Brian Taylor | 2016 Oct 21
*****Loaded with Android 4.4.2 Kitkat, Preloaded with Kodi and EBMC 17 has other streaming apps loaded. This thing is fully loaded and ready to go!!! Comes with plexiglass case and charger.*****
Hardware specification
CPU
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM)
2GB DDR3 (shared with GPU)
Onboard Storage
TF card (Max. 64GB) / MMC card slot, up to 2T on 2.5 SATA disk
16GB EMMC Flash
Onboard Network
10/100/1000M Ethernet RJ45
Onboard WIFI
Realtek RTL8189ETV, IEEE 802.11 b/g/n
Video Input
A CSI input connector Camera:
Supports 8-bit YUV422 CMOS sensor interface
Supports CCIR656 protocol for NTSC and PAL
Supports SM pixel camera sensor
Supports video capture solution up to 1080p@30fps
Audio Input
MIC
Video Outputs
Supports HDMI output with HDCP
Supports HDMI CEC
Supports HDMI 30 function
Integrated CVBS
Supports simultaneous output of HDMI and CVBS
Audio Output
3.5 mm Jack and HDMI
Power Source
DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports
Four USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power Button(SW4), Recovery Button(SW3), Uboot Button(SW2)
Low-level peripherals
40 Pins Header,compatible with Raspberry Pi B+
GPIO(1x3) pin
UART, ground.
